Coach / Carriage Bolt Full Thread M5 x 55mm in A2 Stainless - DIN 603

Generally used in timber to timber and timber to metal construction, these bolts incorporate a square neck to grip the hole in the timber when fitting, and therefore negates the need for any drive recess to be included on top of the head. Supplied to DIN 603. Manufactured with a fully threaded shank.

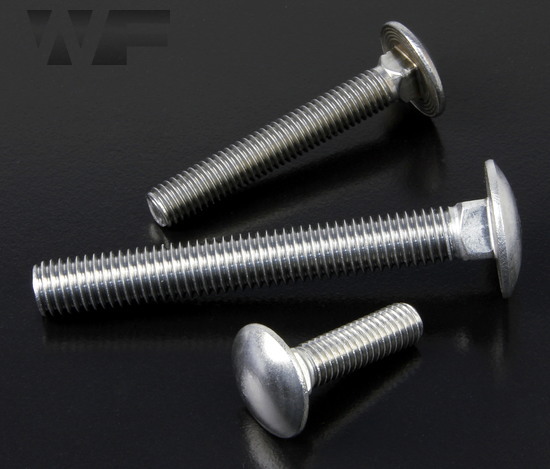

Carriage Bolts DIN 603 with full thread in A2 image

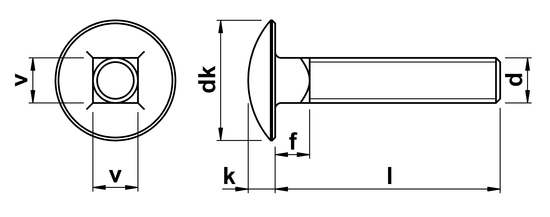

technical drawing of Carriage Bolts DIN 603 with full thread

Technical Summary

nominal diameter

thread pitch

0.80

dk min.

minimum head diameter

12.45

f min.

minimum dome height

2.90

k min.

minimum head height

2.70

v min.

minimum head cylinder height

4.52

Material

A2 Stainless Steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Coach / Carriage Bolt Full Thread M5 x 55mm in A2 Stainless (WF61008)			£3.71

Coach / Carriage Bolt Full Thread M5 x 55mm in A2 Stainless (WF61008)

£3.71

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
