Swivel Shackle with Eyes in A4 Stainless Steel

Swivel shackle with an eye on both ends (eye and eye swivel), are designed to prevent any twisting or snagging on a rope or chain. Any twists in a line or chain could start kinking that would reduce the effectiveness and cause damage. The shackle ends spin on a central pin which the nuts are welded to. These A4 marine grade stainless steel swivel shackles are strong and durable.
Swivel Shackle with Eyes in A4 image

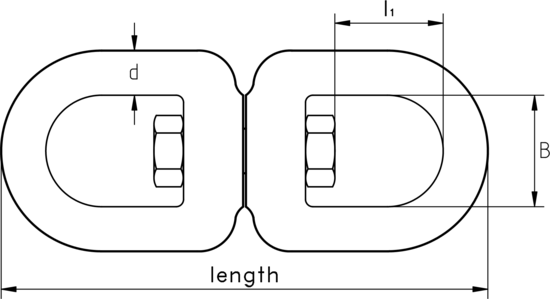

technical drawing of Swivel Shackle with Eyes
Technical Summary
dLengthl1BBreaking Load (kg)Working Load (kg)
5601313650163
6651515935235
89022201660415
1011527242590648
1315435323730930
16188453966301660
all dimensions in millimetres (mm)
html graphic Swivel Shackle with Eyes Guide HTML
pdf graphic Swivel Shackle with Eyes Guide PDF
< View All Marine Hardware
Description Sale Qtys Qty Price Breakdown Despatch Estimate
5mm Swivel Shackle 2 Eyes in A4 Stainless
WF77386		 £0.00
6mm Swivel Shackle 2 Eyes in A4 Stainless
WF77387		 £0.00
8mm Swivel Shackle 2 Eyes in A4 Stainless
WF77388		 £0.00
10mm Swivel Shackle 2 Eyes in A4 Stainless
WF77389		 £0.00
13mm Swivel Shackle 2 Eyes in A4 Stainless
WF77390		 £0.00
16mm Swivel Shackle 2 Eyes in A4 Stainless
WF77391		 £0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Swivel Shackle with Eyes
Technical Summary
dLengthl1BBreaking Load (kg)Working Load (kg)
5601313650163
6651515935235
89022201660415
1011527242590648
1315435323730930
16188453966301660
all dimensions in millimetres (mm)
html graphic Swivel Shackle with Eyes Guide HTML
pdf graphic Swivel Shackle with Eyes Guide PDF
