No.10 Slotted Pan Self Tapping Screws Type C (AB) in A2 Stainless Steel

Self tapping screws are normally used with sheet metal and plastics. This variant has a pan head with a traditional slot drive. As the name suggests, this type of screw forms its own thread as it is installed into a pre-drilled hole.

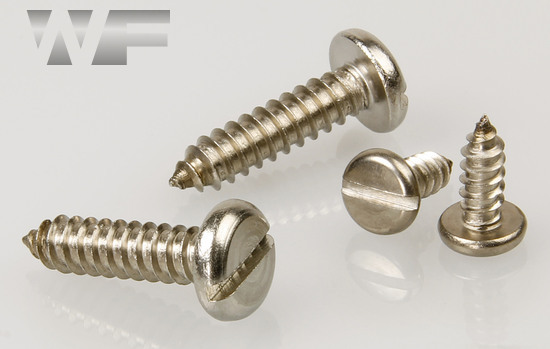

Slotted Pan Self Tapping Screws Type C (AB) in A2 image

technical drawing of Slotted Pan Self Tapping Screws Type C (AB)

Technical Summary

d (gauge)

diameter in gauge size

No.10

d (mm)

diameter in mm

4.8

head diameter

9.5

k min.

minimum head height

2.50

k max.

maximum head height

2.80

slot thickness

1.2

t max.

maximum recess depth

1.70

drive size

7.0x1.2

Standard

DIN 7971/C

all dimensions in millimetres (mm)

				DIN 7971 Slotted Pan Tapping Screw Standard HTML
				DIN 7971 Slotted Pan Tapping Screw Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
No.10 x 9.5mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless WF13041			£0.00
No.10 x 13mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless WF13042			£0.00
No.10 x 16mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless WF13043			£0.00
No.10 x 19mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless WF13044			£0.00
No.10 x 22mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless WF13045			£0.00
No.10 x 25mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless WF1010			£0.00
No.10 x 32mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless WF1011			£0.00
No.10 x 38mmSlotted Pan Self Tapping Screw (AB) in A2 Stainless WF1012			£0.00
No.10 x 45mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless WF86525			£0.00
No.10 x 50mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless WF1013			£0.00
No.10 x 60mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless WF86527			£0.00
No.10 x 70mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless WF86528			£0.00

No.10 x 9.5mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless
WF13041

No.10 x 13mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless
WF13042

No.10 x 16mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless
WF13043

No.10 x 19mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless
WF13044

No.10 x 22mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless
WF13045

No.10 x 25mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless
WF1010

No.10 x 32mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless
WF1011

No.10 x 38mmSlotted Pan Self Tapping Screw (AB) in A2 Stainless
WF1012

No.10 x 45mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless
WF86525

No.10 x 50mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless
WF1013

No.10 x 60mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless
WF86527

No.10 x 70mm Slotted Pan Self Tapping Screw (AB) in A2 Stainless
WF86528

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
