No.7 Slotted Csk Self Tapping Screws Type C in A2 Stainless Steel

Traditional slotted countersunk self tapping screws, for use with a countersunk creating a flush fitting. Self tapping screws cut their own thread into pre-drilled untapped holes and are commonly used for joining sheet metals, plastics and wood. For use with a flat head screwdriver.

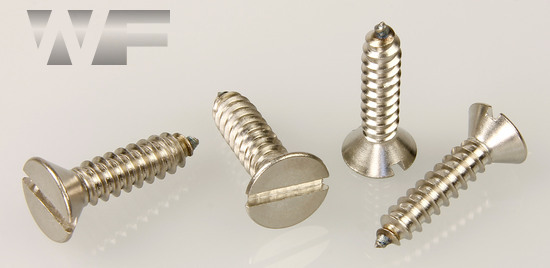

Slotted Csk Self Tapping Screws Type C in A2 image

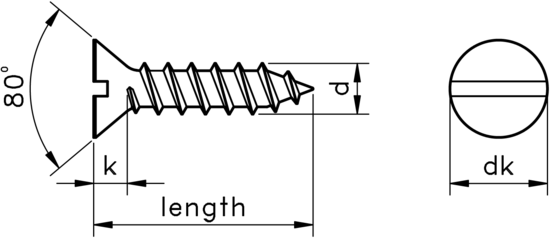

technical drawing of Slotted Csk Self Tapping Screws Type C

Technical Summary

d (gauge)

diameter in gauge size

No.7

d (mm)

diameter in mm

3.9

head diameter

7.5

head height

2.3

slot thickness

1.0

t max.

maximum recess depth

1.05

drive size

5.5x1.0

Standard

DIN 7972

all dimensions in millimetres (mm)

				DIN 7972 Slotted Countersunk Tapping Screw Standard HTML
				DIN 7972 Slotted Countersunk Tapping Screw Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Slotted Csk Self Tapping Screw (AB) No.7 x 9.5mm in A2 Stainless WF934			£0.00
Slotted Csk Self Tapping Screw (AB) No.7 x 13mm in A2 Stainless WF935			£0.00
Slotted Csk Self Tapping Screw (AB) No.7 x 16mm in A2 Stainless WF936			£0.00
Slotted Csk Self Tapping Screw (AB) No.7 x 19mm in A2 Stainless WF937			£0.00
No.7 x 22mm Slotted Csk Self Tapping Screw (AB) in A2 Stainless WF92767			£0.00
Slotted Csk Self Tapping Screw (AB) No.7 x 25mm in A2 Stainless WF938			£0.00
Slotted Csk Self Tapping Screw (AB) No.7 x 32mm in A2 Stainless WF939			£0.00
Slotted Csk Self Tapping Screw (AB) No.7 x 38mm in A2 Stainless WF940			£0.00

Slotted Csk Self Tapping Screw (AB) No.7 x 9.5mm in A2 Stainless
WF934

Slotted Csk Self Tapping Screw (AB) No.7 x 13mm in A2 Stainless
WF935

Slotted Csk Self Tapping Screw (AB) No.7 x 16mm in A2 Stainless
WF936

Slotted Csk Self Tapping Screw (AB) No.7 x 19mm in A2 Stainless
WF937

No.7 x 22mm Slotted Csk Self Tapping Screw (AB) in A2 Stainless
WF92767

Slotted Csk Self Tapping Screw (AB) No.7 x 25mm in A2 Stainless
WF938

Slotted Csk Self Tapping Screw (AB) No.7 x 32mm in A2 Stainless
WF939

Slotted Csk Self Tapping Screw (AB) No.7 x 38mm in A2 Stainless
WF940

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
