6-32 inch UNC Phillips Fillister Head Machine Screws ASME B18.6.3 in A2 Stainless Steel

UNC Phillips Fillister machine screws have a large cylindrical head, with a slightly convex top surface. Fillister head screws are the preferred head type for counterbored holes and can also be used for protecting a surface by raising the level by which the tool is used to tighten the fixing. They are similar to a Pan head machine screw, but with a greater head height. Height to diameter ratio is also larger than a cheese head. Imperial Unified Coarse thread version.

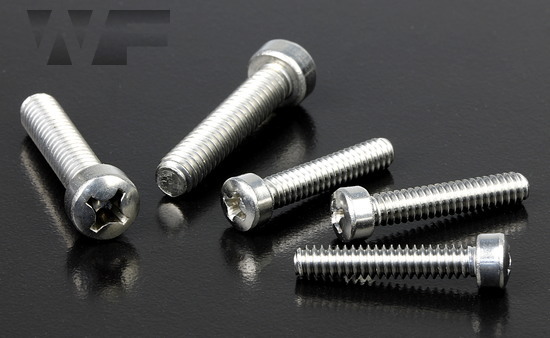

Image of UNC Phillips Fillister Head Machine Screws ASME B18.6.3 in A2 image

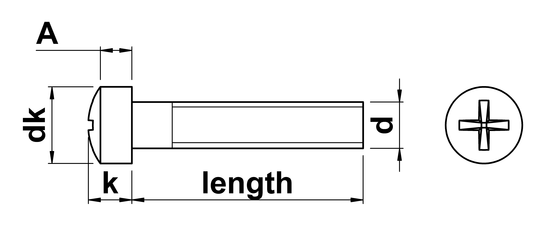

technical drawing of UNC Phillips Fillister Head Machine Screws ASME B18.6.3

Technical Summary

nominal diameter

6-32

t.p.i

threads per inch

dk max. (inch)

head diameter

0.226

A max. (inch)

dimension A maximum

0.086

k max. (inch)

head height

0.132

Standard

ASME B18.6.3

all dimensions in inches

Datasheet

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
6-32 x 7/16 UNC Machine Screw Phil Fillister in A2 Stainless WF58648			£0.00
6-32 x 1/2 UNC Machine Screw Phil Fillister in A2 Stainless WF60553			£0.00
6-32 x 5/8 UNC Machine Screw Phil Fillister in A2 Stainless WF58649			£0.00
6-32 x 3/4 UNC Machine Screw Phil Fillister in A2 Stainless WF58650			£0.00
6-32 x 1 UNC Machine Screw Phil Fillister in A2 Stainless WF58651			£0.00
6-32 x 1-1/4 UNC Machine Screw Phil Fillister in A2 Stainless WF58652			£0.00
6-32 x 1-3/8 UNC Machine Screw Phil Fillister in A2 Stainless WF58653			£0.00
6-32 x 1-1/2 UNC Machine Screw Phil Fillister in A2 Stainless WF58654			£0.00
6-32 x 1-3/4 UNC Machine Screw Phil Fillister in A2 Stainless WF58655			£0.00
6-32 x 2 UNC Machine Screw Phil Fillister in A2 Stainless WF58656			£0.00

6-32 x 7/16 UNC Machine Screw Phil Fillister in A2 Stainless
WF58648

6-32 x 1/2 UNC Machine Screw Phil Fillister in A2 Stainless
WF60553

6-32 x 5/8 UNC Machine Screw Phil Fillister in A2 Stainless
WF58649

6-32 x 3/4 UNC Machine Screw Phil Fillister in A2 Stainless
WF58650

6-32 x 1 UNC Machine Screw Phil Fillister in A2 Stainless
WF58651

6-32 x 1-1/4 UNC Machine Screw Phil Fillister in A2 Stainless
WF58652

6-32 x 1-3/8 UNC Machine Screw Phil Fillister in A2 Stainless
WF58653

6-32 x 1-1/2 UNC Machine Screw Phil Fillister in A2 Stainless
WF58654

6-32 x 1-3/4 UNC Machine Screw Phil Fillister in A2 Stainless
WF58655

6-32 x 2 UNC Machine Screw Phil Fillister in A2 Stainless
WF58656

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
