Hex Bolts ISO 4014 in Organic Zinc Flake Coated Class 12 High Tensile Steel

Metric hexagon bolt to the newer ISO 4014 standard rather than the usual DIN 931 standard. ISO 4014 specifies differences in head dimensions for M10, M12 and M14 thread diameters, including revised spanner sizes. Please take note! These hex bolts are currently available in a modern mechanically applied zinc based coating called zinc flake that offers superior corrosion resistance over the common zinc plated finish. In addition, high tensile fasteners coated in a zinc flake finish are free from the risk of hydrogen embrittlement. Zinc flake coated fasteners are standard fitments in the automotive industry, amongst others, particularly for applications outside of the cabin where corrosion is more of an issue.

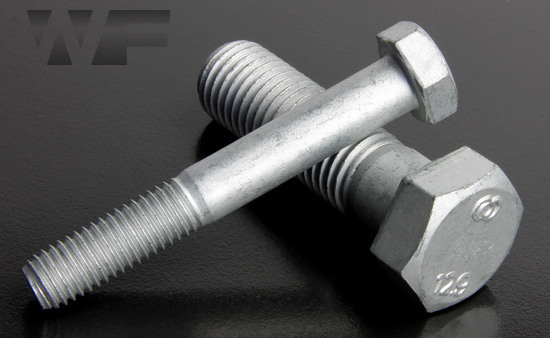

Hex Bolts ISO 4014 in ZnFlk-12.9 image
Material Selection
ZnFlk-10.9
ZnFlk-12.9

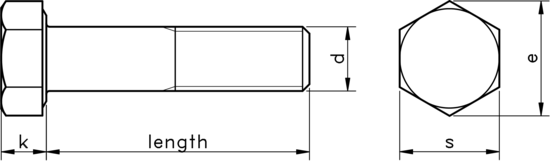

technical drawing of Hex Bolts ISO 4014
Technical Summary
Standard ISO 4014
all dimensions in millimetres (mm)
html graphic ISO 4017 Hex Bolt Standard HTML
pdf graphic ISO 4017 Hex Bolt Standard PDF

Plastic Hex Head Covers
Plastic Hex Head Covers >

< View All Bolts and Machine Screws - Metric
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Hex Bolt Part Thread M10 x 40mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85166		 £0.00
Hex Bolt Part Thread M10 x 45mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85167		 £0.00
Hex Bolt Part Thread M10 x 50mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85168		 £0.00
Hex Bolt Part Thread M10 x 60mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85169		 £0.00
Hex Bolt Part Thread M10 x 70mm ISO 4014 in 12.9 High Tensile Zinc Flake
WF65914		 £0.00
Hex Bolt Part Thread M10 x 80mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85171		 £0.00
Hex Bolt Part Thread M10 x 90mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85172		 £0.00
Hex Bolt Part Thread M12 x 45mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85174		 £0.00
Hex Bolt Part Thread M12 x 50mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85175		 £0.00
Hex Bolt Part Thread M12 x 55mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85176		 £0.00
Hex Bolt Part Thread M12 x 60mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85177		 £0.00
Hex Bolt Part Thread M12 x 65mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85178		 £0.00
Hex Bolt Part Thread M12 x 70mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85179		 £0.00
Hex Bolt Part Thread M12 x 80mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85180		 £0.00
Hex Bolt Part Thread M12 x 90mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85181		 £0.00
Hex Bolt Part Thread M12 x 100mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85173		 £0.00
Hex Bolt Part Thread M16 x 55mm ISO 4014 in 12.9 High Tensile Zinc Flake
WF77216		 £0.00
Hex Bolt Part Thread M16 x 60mm ISO 4014 in 12.9 High Tensile Zinc Flake
WF65916		 £0.00
Hex Bolt Part Thread M16 x 70mm ISO 4014 in 12.9 High Tensile Zinc Flake
WF77218		 £0.00
Hex Bolt Part Thread M16 x 80mm ISO 4014 in 12.9 High Tensile Zinc Flake
WF77220		 £0.00
Hex Bolt Part Thread M16 x 90mm ISO 4014 in 12.9 High Tensile Zinc Flake
WF77222		 £0.00
Hex Bolt Part Thread M16 x 100mm ISO 4014 in 12.9 High Tensile Zinc Flake
WF77224		 £0.00
Hex Bolt Part Thread M16 x 120mm ISO 4014 in 12.9 High Tensile Zinc Flake
WF66032		 £0.00
Hex Bolt Part Thread M20 x 65mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85191		 £0.00
Hex Bolt Part Thread M20 x 70mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85192		 £0.00
Hex Bolt Part Thread M20 x 80mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85193		 £0.00
Hex Bolt Part Thread M20 x 90mm to ISO 4014 in 12.9 High Tensile Zinc Flake
WF85194		 £0.00
Hex Bolt Part Thread M20 x 100mm ISO 4014 in 12.9 High Tensile Zinc Flake
WF66034		 £0.00
Hex Bolt Part Thread M20 x 120mm ISO 4014 in 12.9 High Tensile Zinc Flake
WF66148		 £0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Hex Bolts ISO 4014
Technical Summary
Standard ISO 4014
all dimensions in millimetres (mm)
html graphic ISO 4017 Hex Bolt Standard HTML
pdf graphic ISO 4017 Hex Bolt Standard PDF
