Westfield Fasteners Product Specification:

Hex Socket D Shackle

This product guide contains the specification for D shackles featuring a hex driven pin, which are a series of standard parts available from Westfield Fasteners.

Product Description

A4 stainless steel D shackle with hex socket in the pin bolt. As with other shackle designs, these items are used for connecting ropes, wire ropes and chains. D shackles allow for a quick exchange of connections, and the hex socket type, which screws in flush, creates a smoother connection which is less likely to snare, and in addition gives greater security.

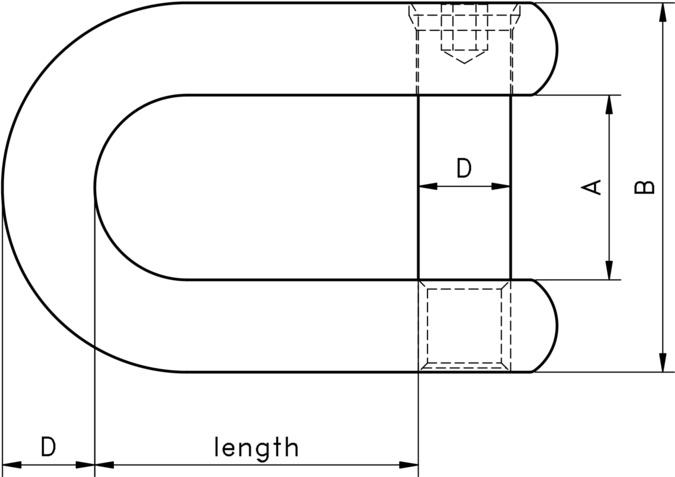

These D Shackles are forged, making them strong and loadable. Please refer to the working load limits and the breaking load weights in table 1. Figure 1 and table 1 below also show the dimensions for sizes from M5 to M16.

Table 1: Dimensions & Tolerances (mm)

D	L	A	B	Pin Thread	Pin Socket Drive	Working Load Limit (kg)	Breaking Load (kg)
5	17.5-19	10	20	M5	2.5	225	925
6	21	12	24	M6	3	330	1325
8	28	16	32	M8	4	590	2400
10	35	20	40	M10	5	930	3800
12	42	24	48	M12	6	1370	5550
16	56	32	64	M16	8	2440	9950
