Westfield Fasteners Product Specification:

D Rings

This product guide contains the specification for D Rings, a series of standard marine parts available from Westfield Fasteners.

Product Description

Made in A4 marine grade stainless steel, these D rings (dee rings) are strong and durable and useful for a multitude of applications. The D ring has been butt welded and polished, so the join is almost impossible to see. Table 1 below outlines the size combinations available.

diameter, d	Length	width, W
3	15	12
3	20	17
4	20	17
4	25	22
4	30	27
5	25	22
5	30	27
5	50	45
6	30	27
6	40	37
6	50	47
8	50	47

D Rings

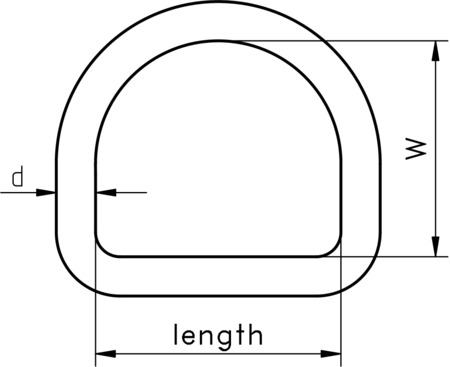

Figure 1: D Ring

Table 1: Part Dimensions (mm)

diameter, d	Length	width, W
3	15	12
3	20	17
4	20	17
4	25	22
4	30	27
5	25	22
5	30	27
5	50	45
6	30	27
6	40	37
6	50	47
8	50	47
