M24 Square Taper Washer for I-Sections in A2 Stainless Steel - DIN 435

Square taper washers for use with tapered flange I-section beams to EN 10024. This washer has a taper angle of 14% which corresponds to the angle or taper on the I-section's flange. The groove is on the underside and indicates the thick end of the taper. Placed on the I section, they will create a level surface for the bolt head or nut to be fixed against. Square taper washers will also distribute the load evenly around the fixing point and reduce the risk of the joint loosening.

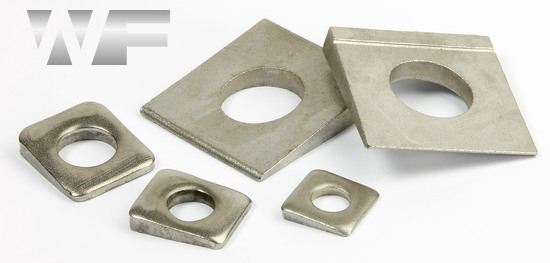

Square Taper Washers for I Sections in A2 image

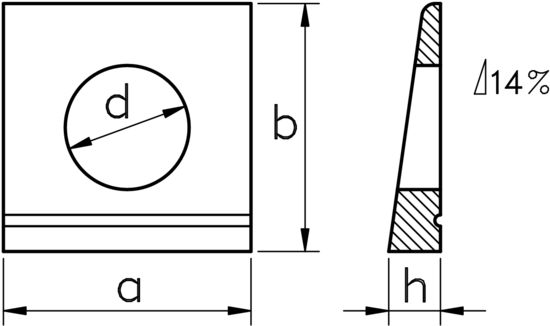

technical drawing of Square Taper Washers for I Sections
Technical Summary
Standard DIN 435
Westfield Fasteners Ltd 2025
html graphic DIN 435 Square Taper Washer for I-Sections Standard HTML
pdf graphic DIN 435 Square Taper Washer for I-Sections Standard PDF
< View all sizes
< View all types in this size
Description Sale Qtys Qty Price Breakdown Despatch Estimate
M24 Square Taper Washer for I-Sections in A2 Stainless Steel
WF86289		 £10.98
M24 Square Taper Washer for I-Sections in A2 Stainless Steel   WF86289
£10.98
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Square Taper Washers for I Sections
Technical Summary
Standard DIN 435
Westfield Fasteners Ltd 2025
html graphic DIN 435 Square Taper Washer for I-Sections Standard HTML
pdf graphic DIN 435 Square Taper Washer for I-Sections Standard PDF
