Rectangular Section Spring Washers in Bright Zinc Plated (BZP) Steel

Spring washer designed to help prevent loosening of bolted joints under vibration. Also know as a Split Lock Washer and a Split Ring Washer. This type has a rectangular section and is manufactured to ASME B18.21.1-1999. Where even distribution of load on the mating surface is the primary requirement an alternative spring washer or a flat washer would be a more suitable solution. In addition Spring Washers do not offer protection for the material being fastened.

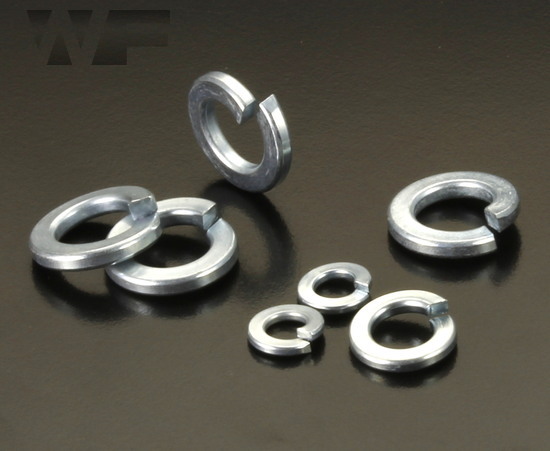

Rectangular Section Spring Washers in BZP image
Material Selection
A2
A4
BZP

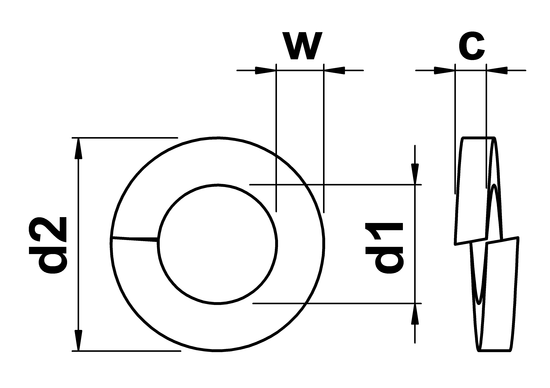

technical drawing of Rectangular Section Spring Washers
Technical Summary
Standard ASME B18.21.1
Westfield Fasteners Ltd 2025
Datasheet

< View All UNF Bolts, Nuts and Washers
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Spring Washer No.4 gauge in Zinc Plated Steel
WF28587		 £0.00
Spring Washer No.6 gauge in Zinc Plated Steel
WF28588		 £0.00
Spring Washer No.8 gauge in Zinc Plated Steel
WF28589		 £0.00
Spring Washer No.10 gauge in Zinc Plated Steel
WF28590		 £0.00
Spring Washer No.12 gauge in Zinc Plated Steel
WF28591		 £0.00
1/4 Spring Washer inch in Zinc Plated Steel
WF28592		 £0.00
5/16 Spring Washer inch in Zinc Plated Steel
WF28593		 £0.00
3/8 Spring Washer inch in Zinc Plated Steel
WF28594		 £0.00
7/16 Spring Washer inch in Zinc Plated Steel
WF28595		 £0.00
1/2 Spring Washer inch in Zinc Plated Steel
WF28596		 £0.00
9/16 Spring Washer inch in Zinc Plated Steel
WF28597		 £0.00
5/8 Spring Washer inch in Zinc Plated Steel
WF28598		 £0.00
3/4 Spring Washer inch in Zinc Plated Steel
WF28599		 £0.00
7/8 Spring Washer inch in Zinc Plated Steel
WF28600		 £0.00
Spring Washer 1 inch in Zinc Plated Steel
WF28601		 £0.00
Spring Washer 1-1/8 inch in Zinc Plated Steel
WF28602		 £0.00
Spring Washer 1-1/4 inch in Zinc Plated Steel
WF28603		 £0.00
Spring Washer 1-3/8 inch in Zinc Plated Steel
WF28604		 £0.00
Spring Washer 1-1/2 inch in Zinc Plated Steel
WF28605		 £0.00
Spring Washer 1-3/4 inch in Zinc Plated Steel
WF28606		 £0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
