M2.5 Pozi Csk Thread Rolling Screws for Metal DIN 7500 Type ME-Z in Bright Zinc Plated (BZP) Steel

Thread rolling screws are designed to tap their own threads into pre-drilled holes in light metals and steel. The triangular shaped tip design allows the thread rolling screw to cold form the female thread into the work piece, so there is no need to pre tap the hole. These items are manufactured to DIN 7500, a standard that covers several head and drive types, including the pozi countersunk head in this section.

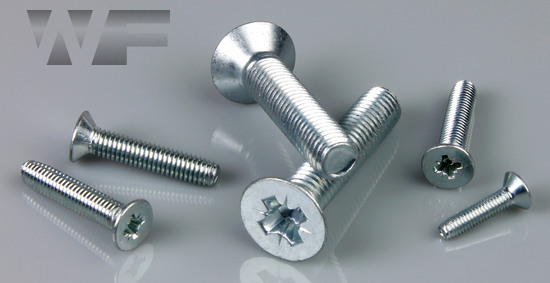

Pozi Csk Thread Rolling Screws for Metal DIN 7500 Type ME-Z in BZP image

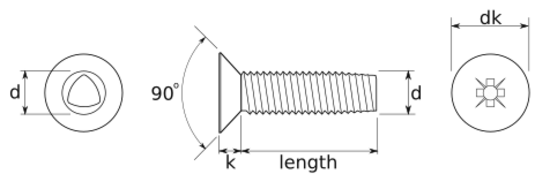

technical drawing of Pozi Csk Thread Rolling Screws for Metal DIN 7500 Type ME-Z

Technical Summary

nominal diameter

M2.5

dk max.

maximum head diameter

4.7

k max.

maximum head height

1.5

t min.

minimum recess depth

1.22

t max.

maximum recess depth

1.47

drive

PZ1

Standard

DIN 7500

all dimensions in millimetres (mm)

				DIN 7500 Standard HTML
				DIN 7500 Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Pozi Countersunk Thread Rolling Screw for Metal M2.5 x 5mm in Zinc Plated Steel WF67721			£0.00
Pozi Countersunk Thread Rolling Screw for Metal M2.5 x 6mm in Zinc Plated Steel WF67722			£0.00
Pozi Countersunk Thread Rolling Screw for Metal M2.5 x 8mm in Zinc Plated Steel WF67723			£0.00
Pozi Countersunk Thread Rolling Screw for Metal M2.5 x 10mm in Zinc Plated Steel WF67724			£0.00

Pozi Countersunk Thread Rolling Screw for Metal M2.5 x 5mm in Zinc Plated Steel
WF67721

Pozi Countersunk Thread Rolling Screw for Metal M2.5 x 6mm in Zinc Plated Steel
WF67722

Pozi Countersunk Thread Rolling Screw for Metal M2.5 x 8mm in Zinc Plated Steel
WF67723

Pozi Countersunk Thread Rolling Screw for Metal M2.5 x 10mm in Zinc Plated Steel
WF67724

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
