12mm diameter Coach Screws DIN 571 in A4 Stainless Steel

Coach screws, also known as lag bolts or lag screws, are a heavy duty wood screw with a hexagonal head. They are usually employed in joining timbers or attaching metalwork to timber. Available in a broad range of sizes and materials for use in projects of varying scale and environments.

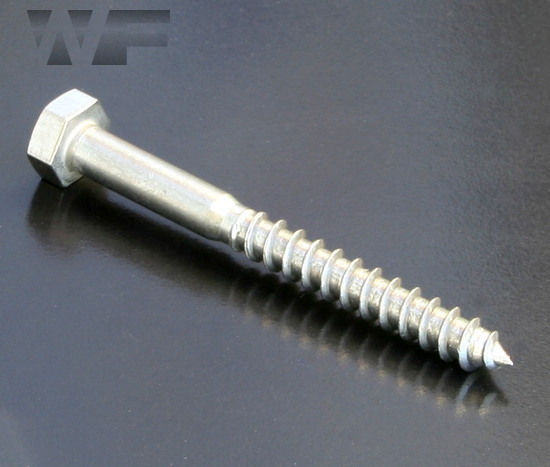

Coach Screws DIN 571 in A4 image

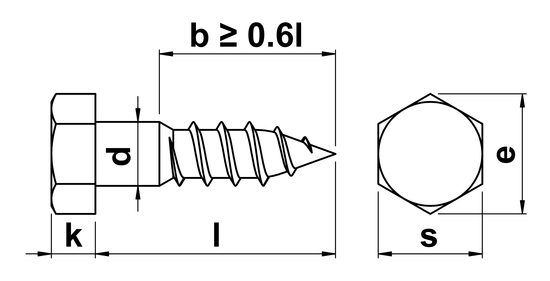

technical drawing of Coach Screws DIN 571
Technical Summary
d nominal diameter 12
k head height 8.0
s drive size 19
e min. minimum width across corners 20.88
Standard DIN 571
all dimensions in millimetres (mm)
html graphic DIN 571 Hexagon Coach Screw Standard HTML
pdf graphic DIN 571 Hexagon Coach Screw Standard PDF
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
12mm x 50mm Coach Screw in A4 Stainless
WF14880		 £0.00
12mm x 60mm Coach Screw in A4 Stainless
WF14881		 £0.00
12mm x 70mm Coach Screw in A4 Stainless
WF14882		 £0.00
12mm x 80mm Coach Screw in A4 Stainless
WF14883		 £0.00
12mm x 100mm Coach Screw in A4 Stainless
WF13315		 £0.00
12mm x 120mm Coach Screw in A4 Stainless
WF14879		 £0.00
12mm x 130mm Coach Screw in A4 Stainless
WF18198		 £0.00
12mm x 140mm Coach Screw in A4 Stainless
WF18199		 £0.00
12mm x 150mm Coach Screw in A4 Stainless
WF18200		 £0.00
12mm x 160mm Coach Screw in A4 Stainless
WF18201		 £0.00
12mm x 200mm Coach Screw in A4 Stainless
WF18203		 £0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Coach Screws DIN 571
Technical Summary
d nominal diameter 12
k head height 8.0
s drive size 19
e min. minimum width across corners 20.88
Standard DIN 571
all dimensions in millimetres (mm)
html graphic DIN 571 Hexagon Coach Screw Standard HTML
pdf graphic DIN 571 Hexagon Coach Screw Standard PDF
