M8 Slotted Hex Head Setscrews (DIN 933) in A2 Stainless Steel

Hexagon Head Set Screw with Slot. Manufactured similar to ISO 4017 (DIN 933) and always fully threaded. Perfect for use where a spanner or socket are unable to be utilised.

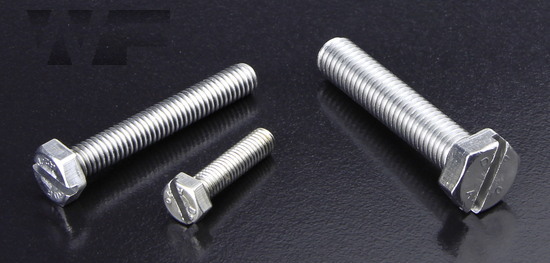

Slotted Hex Head Setscrews (DIN 933) in A2 image

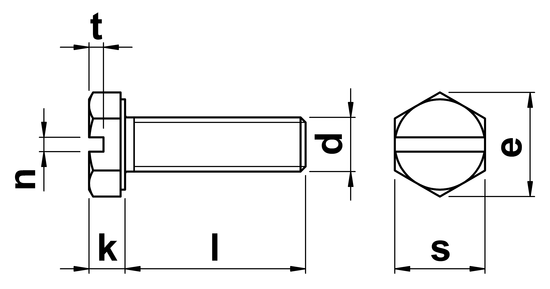

technical drawing of Slotted Hex Head Setscrews (DIN 933)
Technical Summary
d nominal diameter M8
thread pitch thread pitch 1.25
k max. maximum head height 5.3
s drive size 13
e width across corners 14.38
n slot thickness 2.0
t recess depth 2.1
s drive size 2.0X12.0
Standard DIN 933SZ
all dimensions in millimetres (mm)
Datasheet
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
M8 x 10mm Slotted Hex Screw Full Thread in A2 Stainless
WF48933		 £0.00
M8 x 12mm Slotted Hex Screw Full Thread in A2 Stainless
WF48934		 £0.00
M8 x 16mm Slotted Hex Screw Full Thread in A2 Stainless
WF48935		 £0.00
M8 x 20mm Slotted Hex Screw Full Thread in A2 Stainless
WF48936		 £0.00
M8 x 25mm Slotted Hex Screw Full Thread in A2 Stainless
WF48937		 £0.00
M8 x 30mm Slotted Hex Screw Full Thread in A2 Stainless
WF48938		 £0.00
M8 x 40mm Slotted Hex Screw Full Thread in A2 Stainless
WF48918		 £0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Slotted Hex Head Setscrews (DIN 933)
Technical Summary
d nominal diameter M8
thread pitch thread pitch 1.25
k max. maximum head height 5.3
s drive size 13
e width across corners 14.38
n slot thickness 2.0
t recess depth 2.1
s drive size 2.0X12.0
Standard DIN 933SZ
all dimensions in millimetres (mm)
