3/8 inch UNF Cup Point Grub Screws ASME B18.3 in A2 Stainless Steel

Also known as an Allen set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a depression called a cup on the opposite end, and conforms to ASME/ANSI B18.3.

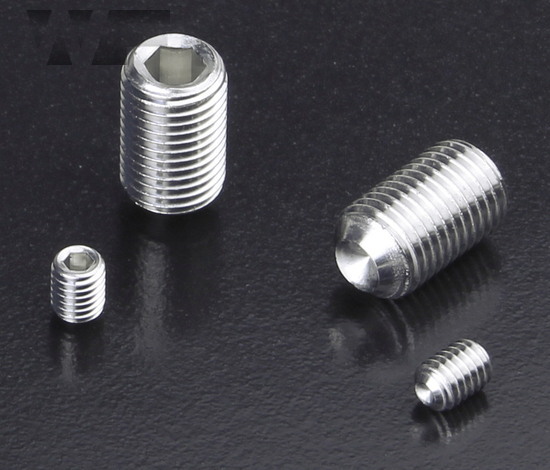

Image of UNF Cup Point Grub Screws ASME B18.3 in A2 image

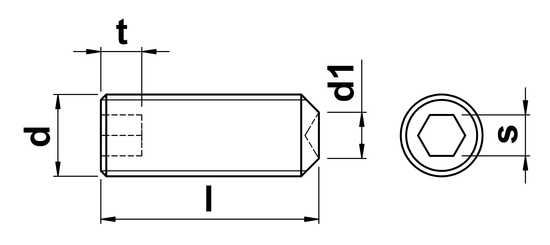

technical drawing of UNF Cup Point Grub Screws ASME B18.3

Technical Summary

nominal diameter

3/8

tpi

threads per inch

drive size

3/16

recess depth

0.188

diameter 1

0.212

Standard

ASME/ANSI B18.3-2002, ASTM F880-02(CW)

all dimensions in inches

				Datasheet
				Guide to Grub Screws

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
3/8 x 1/4 UNF Grub Screw Cup Point in A2 Stainless WF33123			£0.00
3/8 x 5/16 UNF Grub Screw Cup Point in A2 Stainless WF33124			£0.00
3/8 x 3/8 UNF Grub Screw Cup Point in A2 Stainless WF33125			£0.00
3/8 x 1/2 UNF Grub Screw Cup Point in A2 Stainless WF33126			£0.00
3/8 x 5/8 UNF Grub Screw Cup Point in A2 Stainless WF33127			£0.00
3/8 x 3/4 UNF Grub Screw Cup Point in A2 Stainless WF33128			£0.00
3/8 x 1 UNF Grub Screw Cup Point in A2 Stainless WF33129			£0.00
3/8 x 1-1/4 UNF Grub Screw Cup Point in A2 Stainless WF33131			£0.00
3/8 x 1-1/2 UNF Grub Screw Cup Point in A2 Stainless WF33130			£0.00

3/8 x 1/4 UNF Grub Screw Cup Point in A2 Stainless
WF33123

3/8 x 5/16 UNF Grub Screw Cup Point in A2 Stainless
WF33124

3/8 x 3/8 UNF Grub Screw Cup Point in A2 Stainless
WF33125

3/8 x 1/2 UNF Grub Screw Cup Point in A2 Stainless
WF33126

3/8 x 5/8 UNF Grub Screw Cup Point in A2 Stainless
WF33127

3/8 x 3/4 UNF Grub Screw Cup Point in A2 Stainless
WF33128

3/8 x 1 UNF Grub Screw Cup Point in A2 Stainless
WF33129

3/8 x 1-1/4 UNF Grub Screw Cup Point in A2 Stainless
WF33131

3/8 x 1-1/2 UNF Grub Screw Cup Point in A2 Stainless
WF33130

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
