M2 Cone Point Grub Screws ISO 4027 / DIN 914 in A2 Stainless Steel

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a cone point on the opposite end, as to ISO 4027 or DIN 914.

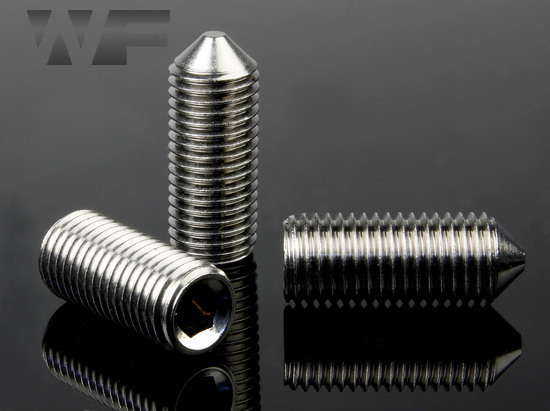

Cone Point Grub Screws ISO 4027 / DIN 914 in A2 image

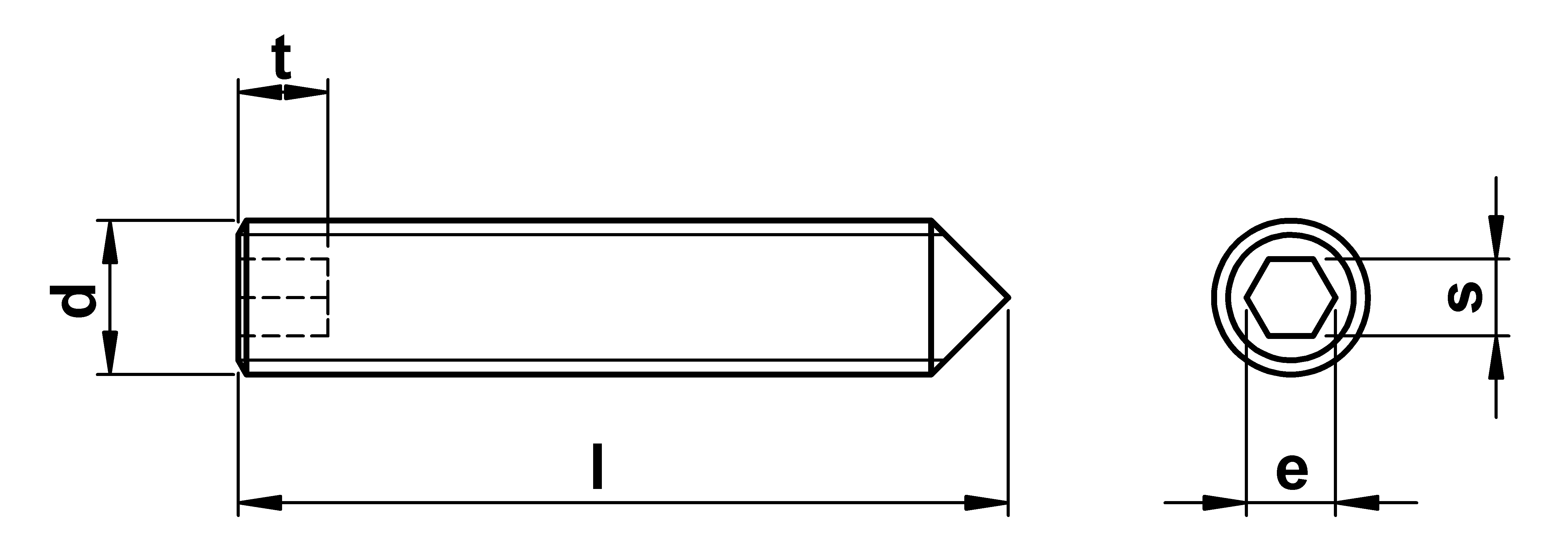

technical drawing of Cone Point Grub Screws ISO 4027 / DIN 914

Technical Summary

nominal diameter

thread pitch

0.40

recess depth

0.8/1.7

drive size

0.9

width across corners

1.003

Standard

ISO 4027 (DIN 914)

all dimensions in millimetres (mm)

				ISO 4027 Standard HTML
				ISO 4027 Standard PDF
				Guide to Grub Screws

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M2 x 2mm Grub Screw Cone Point in A2 Stainless WF63125			£0.00
M2 x 3mm Grub Screw Cone Point in A2 Stainless WF1392			£0.00
M2 x 4mm Grub Screw Cone Point in A2 Stainless WF1393			£0.00
M2 x 5mm Grub Screw Cone Point in A2 Stainless WF1394			£0.00
M2 x 6mm Grub Screw Cone Point in A2 Stainless WF1395			£0.00
M2 x 8mm Grub Screw Cone Point in A2 Stainless WF1396			£0.00
M2 x 10mm Grub Screw Cone Point in A2 Stainless WF1397			£0.00
M2 x 12mm Grub Screw Cone Point in A2 Stainless WF80347			£0.00
M2 x 14mm Grub Screw Cone Point in A2 Stainless WF80348			£0.00
M2 x 16mm Grub Screw Cone Point in A2 Stainless WF80349			£0.00

M2 x 2mm Grub Screw Cone Point in A2 Stainless
WF63125

M2 x 3mm Grub Screw Cone Point in A2 Stainless
WF1392

M2 x 4mm Grub Screw Cone Point in A2 Stainless
WF1393

M2 x 5mm Grub Screw Cone Point in A2 Stainless
WF1394

M2 x 6mm Grub Screw Cone Point in A2 Stainless
WF1395

M2 x 8mm Grub Screw Cone Point in A2 Stainless
WF1396

M2 x 10mm Grub Screw Cone Point in A2 Stainless
WF1397

M2 x 12mm Grub Screw Cone Point in A2 Stainless
WF80347

M2 x 14mm Grub Screw Cone Point in A2 Stainless
WF80348

M2 x 16mm Grub Screw Cone Point in A2 Stainless
WF80349

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
