M8 Unbrako Socket Head Countersunk Screws ISO 10642 in Black Oxide Class 12+ High Tensile Steel

A countersunk headed screw conforming with ISO 10642 or DIN 7991, requiring a hex key (otherwise known as an Allen key) to fit. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. The head diameter is slightly larger than that of the equivalent DIN 965 Phillips or Pozi driven screw. UNBRAKO® branded and manufactured to be stronger than the other size for size high tensile versions. Includes a precision hex socket for maximum key engagement. Please note that due to the nature of the surface finish on Unbrako products, some surface corrosion may be evident. This does not affect the performance of the product. Property class of 12.9.

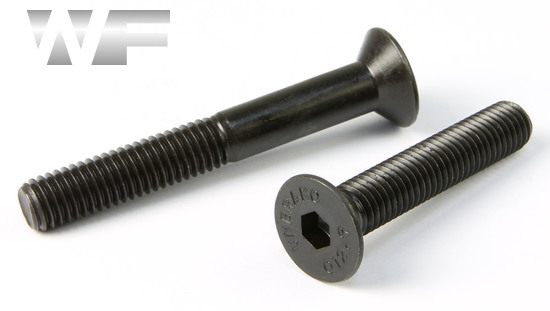

Unbrako Socket Head Countersunk Screws ISO 10642 in BO image

technical drawing of Unbrako Socket Head Countersunk Screws ISO 10642

Technical Summary

nominal diameter

thread pitch

1.25

head diameter

head height

5.00

drive size

5.00

minimum thread length

recess depth

3.50

width across corners

1.25

Standard

ISO 10642 (DIN 7991)

Material

Black Oxide Class 12+ High Tensile Steel

all dimensions in millimetres (mm)

Unbrako Engineering Guide

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Unbrako Socket Head Csk Screw Full Thread M8 x 10mm in Black Oxide WF48304			£0.00
Unbrako Socket Head Csk Screw Full Thread M8 x 12mm in Black Oxide WF48305			£0.00
Unbrako Socket Head Csk Screw Full Thread M8 x 15mm in Black Oxide WF48306			£0.00
Unbrako Socket Head Csk Screw Full Thread M8 x 16mm in Black Oxide WF48307			£0.00
Unbrako Socket Head Csk Screw Full Thread M8 x 18mm in Black Oxide WF48308			£0.00
Unbrako Socket Head Csk Screw Full Thread M8 x 20mm in Black Oxide WF48309			£0.00
Unbrako Socket Head Csk Screw Full Thread M8 x 25mm in Black Oxide WF48310			£0.00
Unbrako Socket Head Csk Screw Full Thread M8 x 30mm in Black Oxide WF48311			£0.00
Unbrako Socket Head Csk Screw Full Thread M8 x 35mm in Black Oxide WF48312			£0.00
Unbrako Socket Head Csk Screw Full Thread M8 x 40mm in Black Oxide WF48313			£0.00
Unbrako Socket Head Csk Screw Full Thread M8 x 45mm in Black Oxide WF48314			£0.00
Unbrako Socket Head Csk Screw Part Thread M8 x 50mm in Black Oxide WF48315			£0.00
Unbrako Socket Head Csk Screw Part Thread M8 x 55mm in Black Oxide WF48316			£0.00
Unbrako Socket Head Csk Screw Part Thread M8 x 60mm in Black Oxide WF48317			£0.00
Unbrako Socket Head Csk Screw Part Thread M8 x 70mm in Black Oxide WF48318			£0.00

Unbrako Socket Head Csk Screw Full Thread M8 x 10mm in Black Oxide
WF48304

Unbrako Socket Head Csk Screw Full Thread M8 x 12mm in Black Oxide
WF48305

Unbrako Socket Head Csk Screw Full Thread M8 x 15mm in Black Oxide
WF48306

Unbrako Socket Head Csk Screw Full Thread M8 x 16mm in Black Oxide
WF48307

Unbrako Socket Head Csk Screw Full Thread M8 x 18mm in Black Oxide
WF48308

Unbrako Socket Head Csk Screw Full Thread M8 x 20mm in Black Oxide
WF48309

Unbrako Socket Head Csk Screw Full Thread M8 x 25mm in Black Oxide
WF48310

Unbrako Socket Head Csk Screw Full Thread M8 x 30mm in Black Oxide
WF48311

Unbrako Socket Head Csk Screw Full Thread M8 x 35mm in Black Oxide
WF48312

Unbrako Socket Head Csk Screw Full Thread M8 x 40mm in Black Oxide
WF48313

Unbrako Socket Head Csk Screw Full Thread M8 x 45mm in Black Oxide
WF48314

Unbrako Socket Head Csk Screw Part Thread M8 x 50mm in Black Oxide
WF48315

Unbrako Socket Head Csk Screw Part Thread M8 x 55mm in Black Oxide
WF48316

Unbrako Socket Head Csk Screw Part Thread M8 x 60mm in Black Oxide
WF48317

Unbrako Socket Head Csk Screw Part Thread M8 x 70mm in Black Oxide
WF48318

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.

Technical Summary

nominal diameter

thread pitch

1.25

head diameter

head height

5.00

drive size

5.00

minimum thread length

recess depth

3.50

width across corners

1.25

Standard

ISO 10642 (DIN 7991)

Material

Black Oxide Class 12+ High Tensile Steel

all dimensions in millimetres (mm)

Unbrako Engineering Guide
