M5 Unbrako Socket Head Button Screws ISO 7380 in Black Oxide Class 12+ High Tensile Steel

Socket Head Button Screws in a Black Oxide Finish. A popular socket head screw, typically used where a lower profile domed finish is required. UNBRAKO® branded and manufactured to be stronger than the other size for size high tensile versions. Includes a precision hex socket for maximum key engagement. Recommended for moderate applications such as machine guards, hinges and covers. Please note that due to the nature of the surface finish on Unbrako products, some surface corrosion may be evident. This does not affect the performance of the product. Property class of 12.9, similar to ISO 7380.

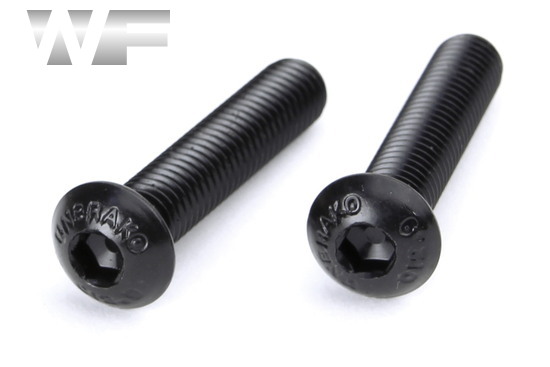

Unbrako Socket Head Button Screws ISO 7380 in BO image
Unbrako logo
technical drawing of Unbrako Socket Head Button Screws ISO 7380
Technical Summary
d nominal diameter M5
thread pitch thread pitch 0.80
dk head diameter 9.5
k max. maximum head height 2.75
s drive size 3
t recess depth 1.56
p thread pitch 0.80
Standard ISO 7380
Material Black Oxide Class 12+ High Tensile Steel
all dimensions in millimetres (mm)
Unbrako Engineering Guide
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
M5 x 6mm Unbrako Socket Head Button Screw in Black Oxide
WF48214
£0.00
M5 x 8mm Unbrako Socket Head Button Screw in Black Oxide
WF48215
£0.00
M5 x 10mm Unbrako Socket Head Button Screw in Black Oxide
WF48216
£0.00
M5 x 12mm Unbrako Socket Head Button Screw in Black Oxide
WF48217
£0.00
M5 x 15mm Unbrako Socket Head Button Screw in Black Oxide
WF48218
£0.00
M5 x 16mm Unbrako Socket Head Button Screw in Black Oxide
WF48219
£0.00
M5 x 18mm Unbrako Socket Head Button Screw in Black Oxide
WF48220
£0.00
M5 x 20mm Unbrako Socket Head Button Screw in Black Oxide
WF48221
£0.00
M5 x 22mm Unbrako Socket Head Button Screw in Black Oxide
WF48222
£0.00
M5 x 25mm Unbrako Socket Head Button Screw in Black Oxide
WF48223
£0.00
M5 x 30mm Unbrako Socket Head Button Screw in Black Oxide
WF48224
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
Unbrako logo
technical drawing of Unbrako Socket Head Button Screws ISO 7380
Technical Summary
d nominal diameter M5
thread pitch thread pitch 0.80
dk head diameter 9.5
k max. maximum head height 2.75
s drive size 3
t recess depth 1.56
p thread pitch 0.80
Standard ISO 7380
Material Black Oxide Class 12+ High Tensile Steel
all dimensions in millimetres (mm)
