3/4 inch UNC Hex Head Bolts ASME B18.2.1 in A2 Stainless Steel

The most common type of fastener, a hex head bolt is designed to be tightened with a standard spanner or ratchet and socket. Popularly used in all assemblies, a standard hex bolt is a staple across the world. Manufactured to ASME B18.2.1, and includes an unthreaded section of the shaft. A hex drive permits a greater torque load to be applied to the joint over most other drive types.

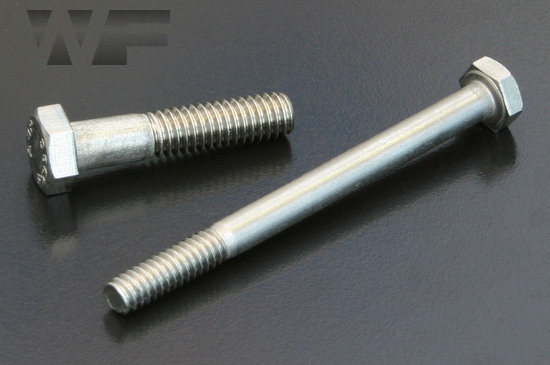

Image of UNC Hex Head Bolts ASME B18.2.1 in A2 image

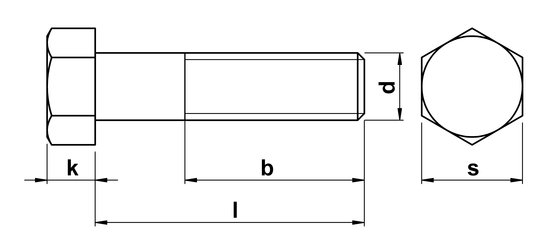

technical drawing of UNC Hex Head Bolts ASME B18.2.1
Technical Summary
d nominal diameter 3/4
tpi threads per inch 10
b nom. (inch) nominal thread length 1.750
k max. (inch) head height 0.524
s max. (inch) drive size 1.125
Standard ASME B18.2.1 / ASTM F593-(CW)
Material A2 Stainless Steel
all dimensions in inches
datasheet
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Hex Bolt Part Thread UNC 3/4 x 2-3/4 inch in A2 Stainless
WF16912
£0.00
Hex Bolt Part Thread UNC 3/4 x 3 inch in A2 Stainless
WF16913
£0.00
Hex Bolt Part Thread UNC 3/4 x 3-1/4 inch in A2 Stainless
WF16914
£0.00
Hex Bolt Part Thread UNC 3/4 x 3-1/2 inch in A2 Stainless
WF16915
£0.00
Hex Bolt Part Thread UNC 3/4 x 3-3/4 inch in A2 Stainless
WF36226
£0.00
Hex Bolt Part Thread UNC 3/4 x 4 inch in A2 Stainless
WF16916
£0.00
Hex Bolt Part Thread UNC 3/4 x 4-1/2 inch in A2 Stainless
WF16918
£0.00
Hex Bolt Part Thread UNC 3/4 x 5 inch in A2 Stainless
WF16919
£0.00
Hex Bolt Part Thread UNC 3/4 x 5-1/2 inch in A2 Stainless
WF16920
£0.00
Hex Bolt Part Thread UNC 3/4 x 6 inch in A2 Stainless
WF16921
£0.00
Hex Bolt Part Thread UNC 3/4 x 7-1/2inch in A2 Stainless
WF42828
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of UNC Hex Head Bolts ASME B18.2.1
Technical Summary
d nominal diameter 3/4
tpi threads per inch 10
b nom. (inch) nominal thread length 1.750
k max. (inch) head height 0.524
s max. (inch) drive size 1.125
Standard ASME B18.2.1 / ASTM F593-(CW)
Material A2 Stainless Steel
all dimensions in inches
