6mm diameter Slotted Raised Countersunk Wood Screws DIN 95 in A2 Stainless Steel

Slotted Raised Countersunk Wood Screw giving an attractive finish when fitted. Please refer to dimensions on the datasheet when replacing existing wood screws, as there can be variation between actual and nominal diameters.

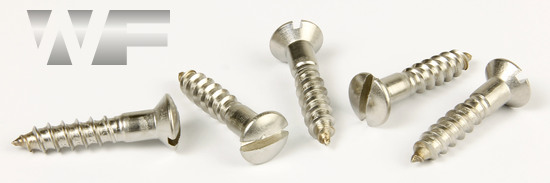

Slotted Raised Countersunk Wood Screws DIN 95 in A2 image

technical drawing of Slotted Raised Countersunk Wood Screws DIN 95

Technical Summary

d (nominal)

nominal diameter

d (actual)

actual diameter

5.6-6.0

head diameter

11.0

head height

3.00

slot thickness

1.6

recess depth

2.80

dome height

1.50

Standard

DIN 95

all dimensions in millimetres (mm)

				DIN 95 Slotted Raised Countersunk Wood Screw Standard HTML
				DIN 95 Slotted Raised Countersunk Wood Screw Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
6mm x 20mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88587			£0.00
6mm x 25mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88588			£0.00
6mm x 30mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF78964			£0.00
6mm x 35mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88590			£0.00
6mm x 40mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88591			£0.00
6mm x 45mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88592			£0.00
6mm x 50mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88593			£0.00
6mm x 55mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88594			£0.00
6mm x 60mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88595			£0.00
6mm x 65mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88596			£0.00
6mm x 70mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88597			£0.00
6mm x 75mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88598			£0.00
6mm x 80mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88599			£0.00
6mm x 90mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88600			£0.00
6mm x 100mm Slotted Raised Countersunk Wood Screw in A2 Stainless WF88584			£0.00

6mm x 20mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88587

6mm x 25mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88588

6mm x 30mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF78964

6mm x 35mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88590

6mm x 40mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88591

6mm x 45mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88592

6mm x 50mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88593

6mm x 55mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88594

6mm x 60mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88595

6mm x 65mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88596

6mm x 70mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88597

6mm x 75mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88598

6mm x 80mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88599

6mm x 90mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88600

6mm x 100mm Slotted Raised Countersunk Wood Screw in A2 Stainless
WF88584

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
