No.6 Hex Head Self Drilling Screws With Flange in A2 Stainless Steel

Self Drilling screws are designed to be fitted without the need for a pre-drilled hole, and employs self tapping threads enabling installation in one operation. This variant has a hexagon head, so is designed to be driven in with a standard spanner or ratchet and socket. Only suitable for light applications such as aluminium ducting or 1mm steel. Heavier duty Evolution branded screws are available.

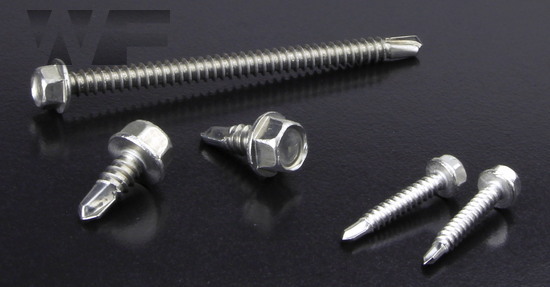

Hex Head Self Drilling Screws With Flange in A2 image

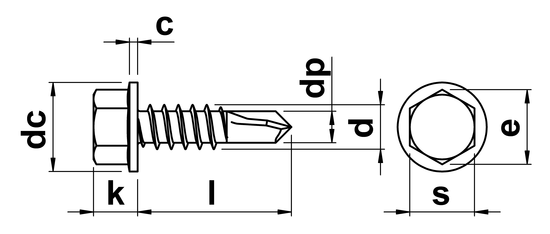

technical drawing of Hex Head Self Drilling Screws With Flange

Technical Summary

d (gauge)

diameter in gauge size

No.6

d (mm)

diameter in mm

3.5

dog diameter

2.8

drive size

5.5

thickness

0.6

k max.

maximum head height

3.45

dc max.

maximum flange diameter

8.3

e min.

minimum width across corners

5.96

Standard

DIN 7504K

all dimensions in millimetres (mm)

Datasheet

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Self Drilling Screw Hex Flange No.6 x 9.5mm in A2 Stainless WF20707			£0.00
No.6 x 13mm Self Drilling Screw Hex Flange in A2 Stainless WF20708			£0.00
No.6 x 16mm Self Drilling Screw Hex Flange in A2 Stainless WF20709			£0.00
No.6 x 19mm Self Drilling Screw Hex Flange in A2 Stainless WF20710			£0.00
Self Drilling Screw Hex Flange No.6 x 22mm in A2 Stainless WF20711			£0.00
No.6 x 25mm Self Drilling Screw Hex Flange in A2 Stainless WF20712			£0.00

Self Drilling Screw Hex Flange No.6 x 9.5mm in A2 Stainless
WF20707

No.6 x 13mm Self Drilling Screw Hex Flange in A2 Stainless
WF20708

No.6 x 16mm Self Drilling Screw Hex Flange in A2 Stainless
WF20709

No.6 x 19mm Self Drilling Screw Hex Flange in A2 Stainless
WF20710

Self Drilling Screw Hex Flange No.6 x 22mm in A2 Stainless
WF20711

No.6 x 25mm Self Drilling Screw Hex Flange in A2 Stainless
WF20712

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
