M2.5 Flat Point Grub Screws ISO 4026 / DIN 913 in A2 Stainless Steel

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a flat on the opposite end, as to ISO 4026 or DIN 913.

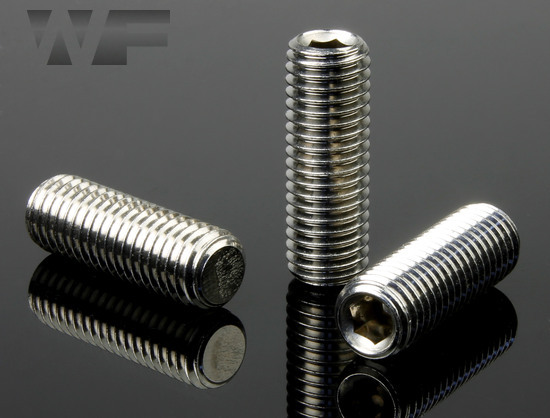

Flat Point Grub Screws ISO 4026 / DIN 913 in A2 image

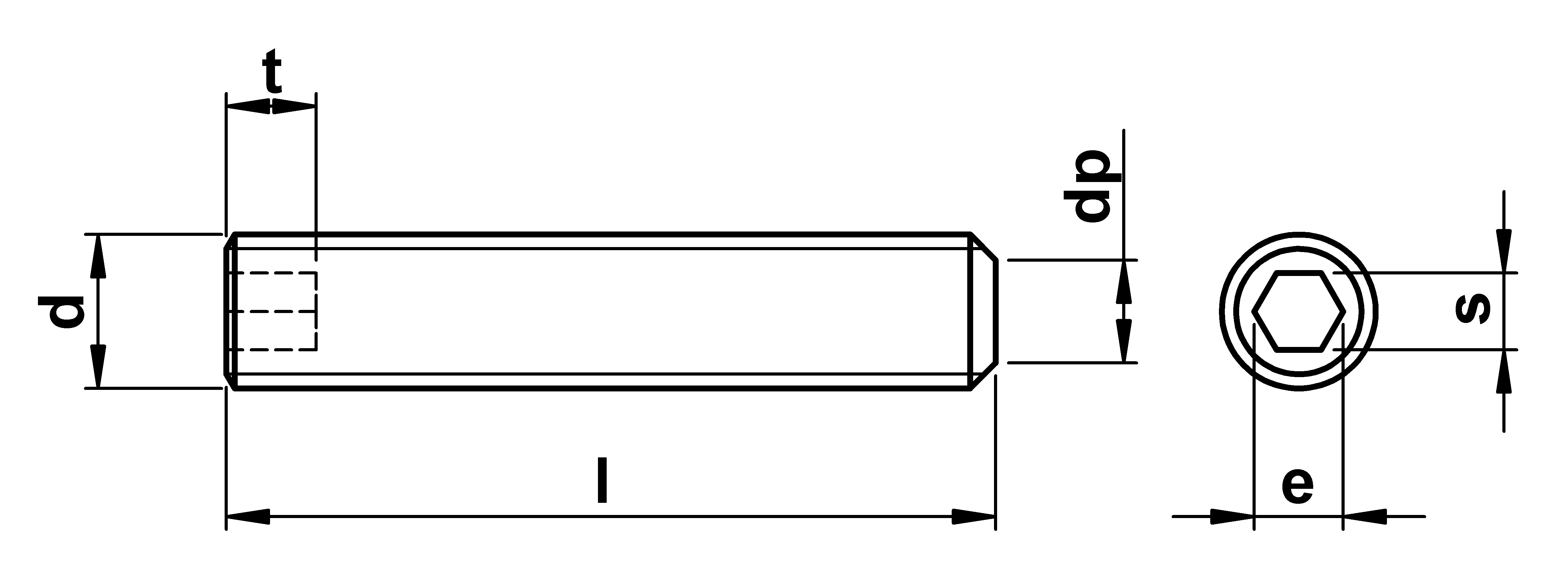

technical drawing of Flat Point Grub Screws ISO 4026 / DIN 913

Technical Summary

nominal diameter

M2.5

thread pitch

0.45

dog diameter

1.25

t min.

minimum recess depth

1.2

t max.

maximum recess depth

2.0

drive size

1.3

width across corners

1.427

Standard

ISO 4026 / DIN 913

all dimensions in millimetres (mm)

				ISO 4026 Standard HTML
				ISO 4026 Standard PDF
				Guide to Grub Screws

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M2.5 x 3mm Grub Screw Flat Point in A2 Stainless WF1599			£0.00
M2.5 x 4mm Grub Screw Flat Point in A2 Stainless WF1600			£0.00
M2.5 x 5mm Grub Screw Flat Point in A2 Stainless WF14953			£0.00
M2.5 x 6mm Grub Screw Flat Point in A2 Stainless WF14954			£0.00
M2.5 x 8mm Grub Screw Flat Point in A2 Stainless WF79965			£0.00
M2.5 x 10mm Grub Screw Flat Point in A2 Stainless WF69346			£0.00
M2.5 x 12mm Grub Screw Flat Point in A2 Stainless WF79958			£0.00
M2.5 x 14mm Grub Screw Flat Point in A2 Stainless WF79959			£0.00
M2.5 x 16mm Grub Screw Flat Point in A2 Stainless WF57558			£0.00

M2.5 x 3mm Grub Screw Flat Point in A2 Stainless
WF1599

M2.5 x 4mm Grub Screw Flat Point in A2 Stainless
WF1600

M2.5 x 5mm Grub Screw Flat Point in A2 Stainless
WF14953

M2.5 x 6mm Grub Screw Flat Point in A2 Stainless
WF14954

M2.5 x 8mm Grub Screw Flat Point in A2 Stainless
WF79965

M2.5 x 10mm Grub Screw Flat Point in A2 Stainless
WF69346

M2.5 x 12mm Grub Screw Flat Point in A2 Stainless
WF79958

M2.5 x 14mm Grub Screw Flat Point in A2 Stainless
WF79959

M2.5 x 16mm Grub Screw Flat Point in A2 Stainless
WF57558

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
